RFQ Checklist
- Index sequence (angles and dwell logic)
- Target cycle time and peak acceleration limits
- Top-load, fixture mass, and inertia data
- Current mechanical indexer baseline for retrofit projects
← Back to Products
Rotary Indexing Tables
Indexing-focused rotary tables for fast cycle production cells that need repeatable angular stops and robust uptime.
Target Buyer:Suitable for line builders upgrading from mechanical indexing systems to programmable servo indexing.
Capability Highlights
- Designed for frequent indexing duty with controlled acceleration
- Supports equal and non-equal angle indexing programs
- Replacement path for legacy cam-divider style workflows
Typical Applications
- Multi-station transfer and assembly tables
- Packaging and automated part handling
- Legacy cam indexer retrofit projects
Engineering Focus
- Define index angle set and cycle-time envelope
- Validate shock, inertia, and fixture clamp reaction loads
- Confirm maintainability and downtime control strategy
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Indexing Repeatability | Application-specific precision class | Controls station-to-station alignment quality over long production runs. |
| Cycle Time Capability | Defined by inertia and motion profile | Directly ties to throughput and OEE targets. |
| Service Uptime | Program and maintenance dependent | Lower unplanned downtime protects delivery commitments. |
Risk Controls
- Retrofitting without full inertia/fixture audit: Capture real load map and mechanical interface before conversion design.
- Unexpected vibration at high index speed: Include dynamic balance and motion tuning verification in sample plan.
Decision Workflow From First RFQ to Release
Treat this page as a working template for engineering and procurement alignment, not a brochure. The goal is to convert Rotary Indexing Tables requirements into measurable acceptance rules before model selection and sourcing release.
- Baseline lock: confirm Index sequence (angles and dwell logic) and Target cycle time and peak acceleration limits.
- Fit validation: verify Indexing Repeatability and Cycle Time Capability under real payload and cycle conditions.
- Risk clearance: close controls for Retrofitting without full inertia/fixture audit and Unexpected vibration at high index speed.
- Release package: attach the evidence table below to your internal review so quote comparison is based on the same criteria.
Minimum Evidence Pack for Buyer Review
Use this pack to compare suppliers on equivalent inputs. It prevents quote loops caused by hidden assumption differences.
| Artifact | Minimum Content | Acceptance Signal |
|---|---|---|
| Product RFQ sheet | Index sequence (angles and dwell logic) | No unresolved assumptions in supplier clarification round. |
| Validation matrix | Metric targets for Indexing Repeatability and Cycle Time Capability. | Pass/fail thresholds are numeric and test-method linked. |
| Risk closure log | Preventive actions for Retrofitting without full inertia/fixture audit. | Owner, due date, and verification evidence are assigned. |
Non-Fit Triggers Before PO
- Stop release if requirement ownership is unclear across supplier, controls engineer, and procurement approver.
- Delay commitment if Indexing Repeatability is quoted without a reproducible validation method.
- Hold PO when critical risks (for example, Retrofitting without full inertia/fixture audit) are still tracked as open items.

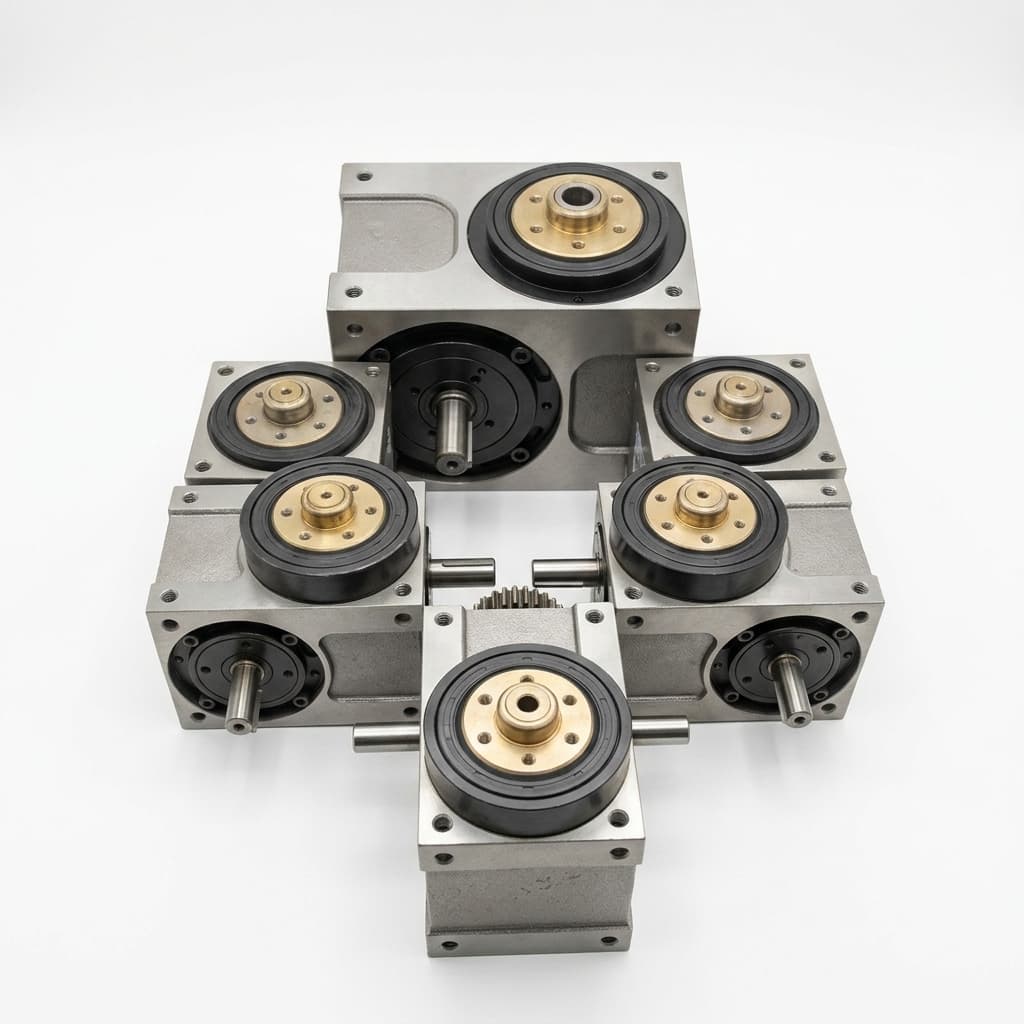

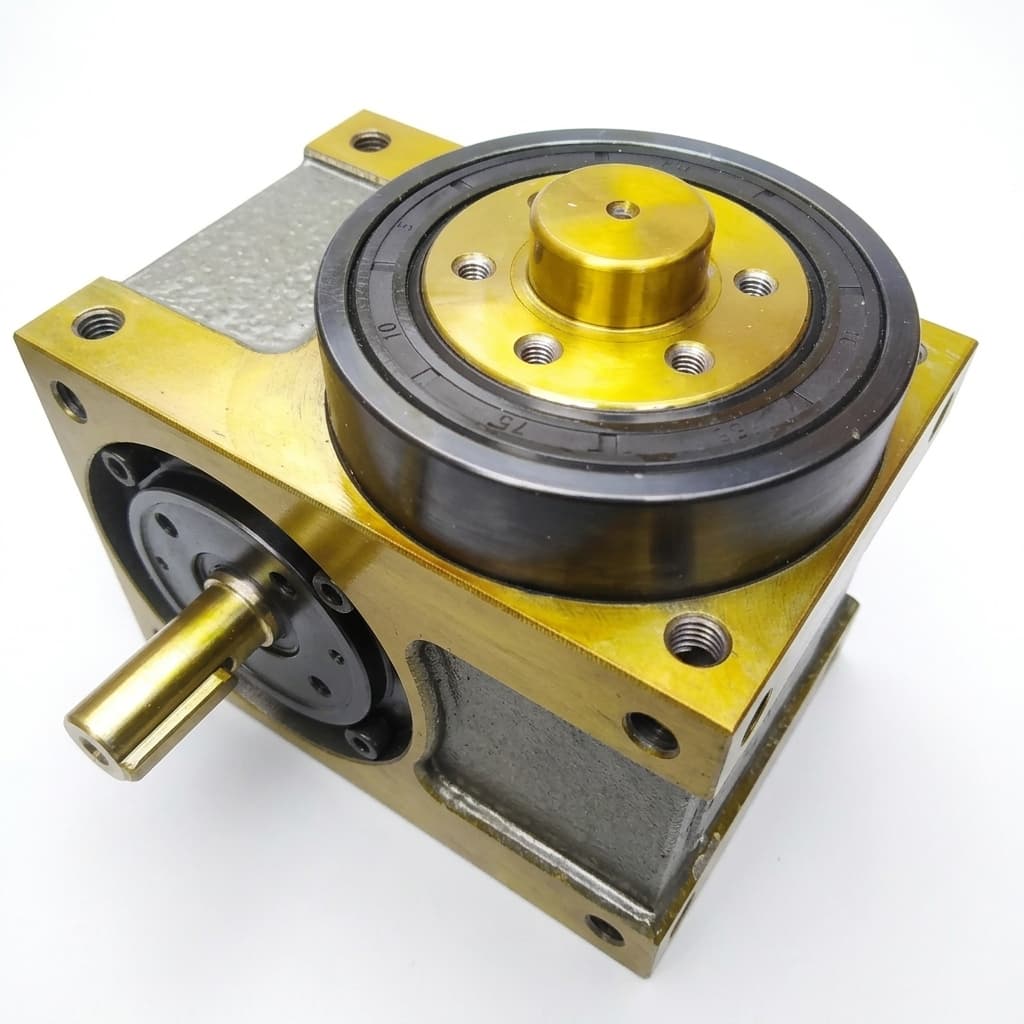

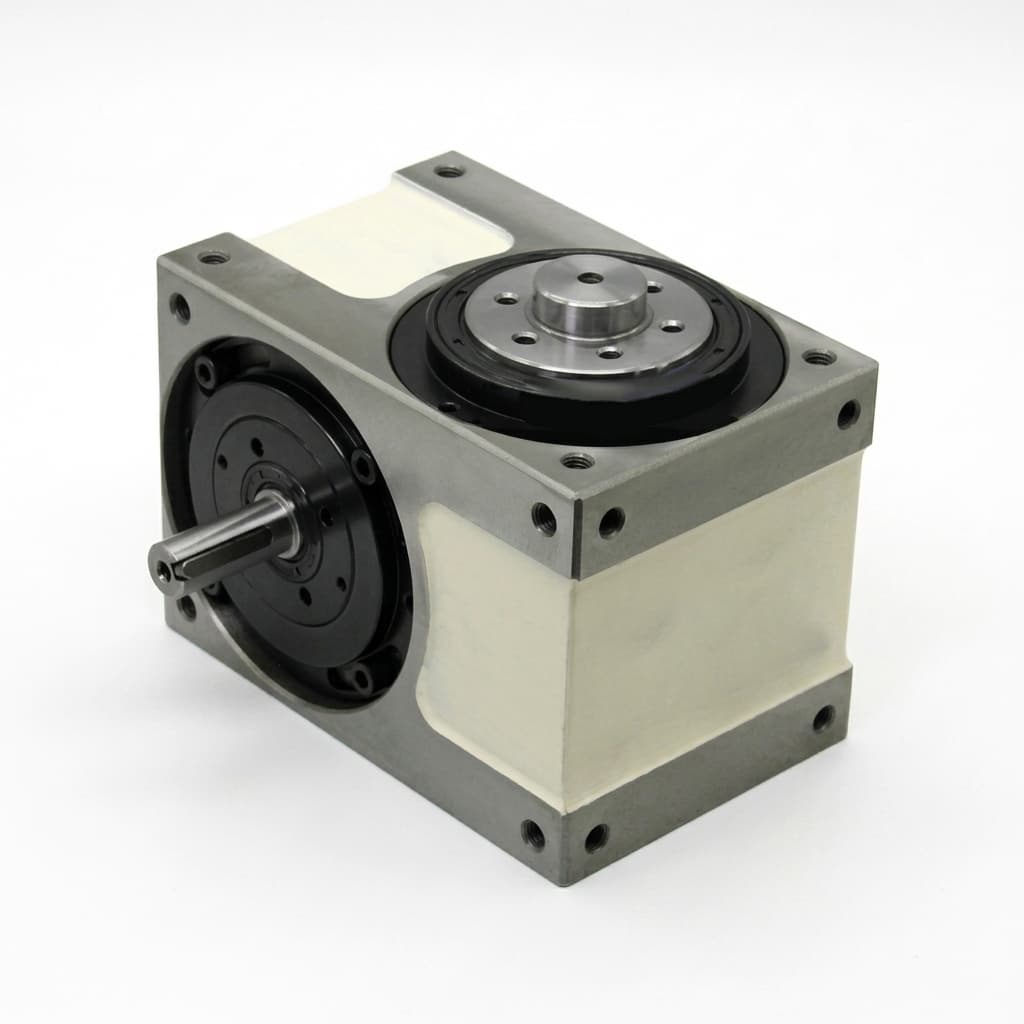

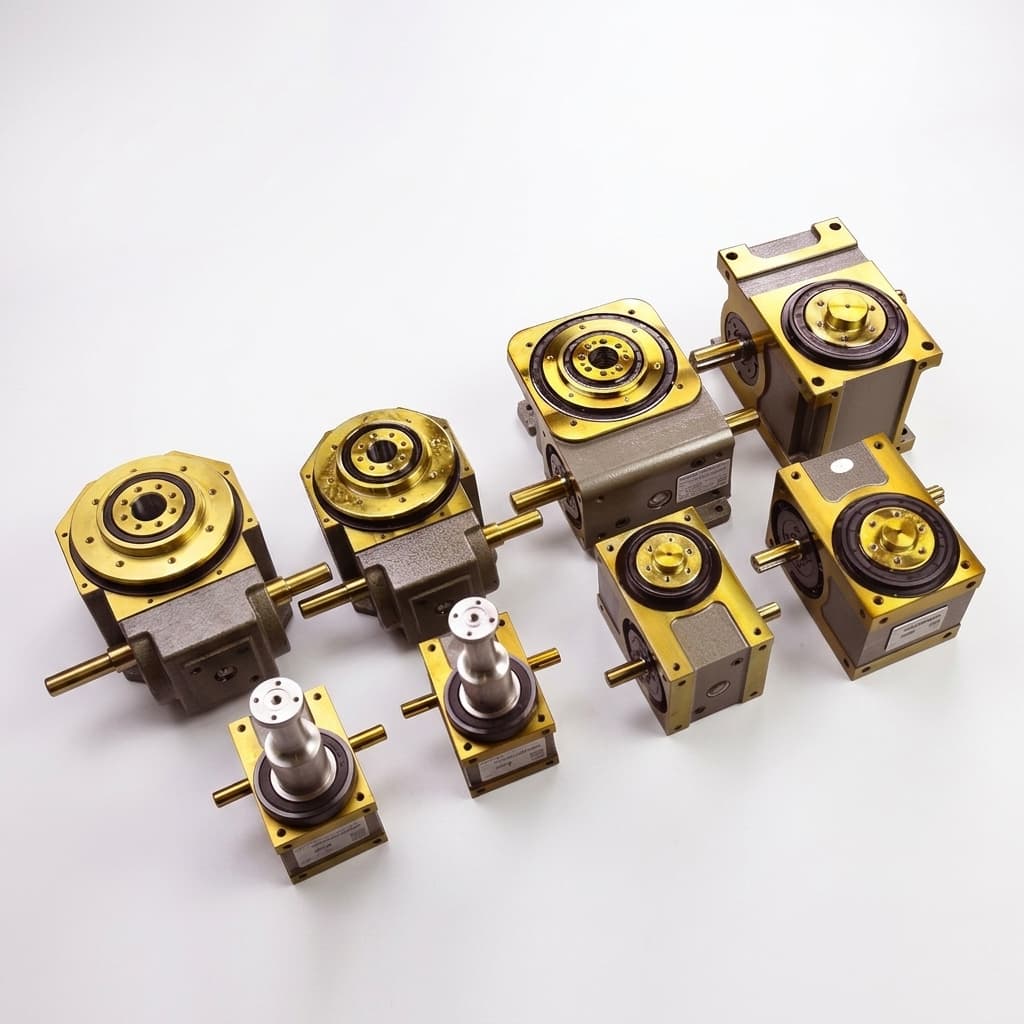

Product Gallery
Buyer FAQ
Is this a practical replacement for cam indexers?
Yes, especially when your process needs flexible index angles, speed tuning, and programmable motion profiles.
Can you support retrofit projects with existing station tooling?
Yes. We can align new rotary modules to existing fixture and process constraints.
